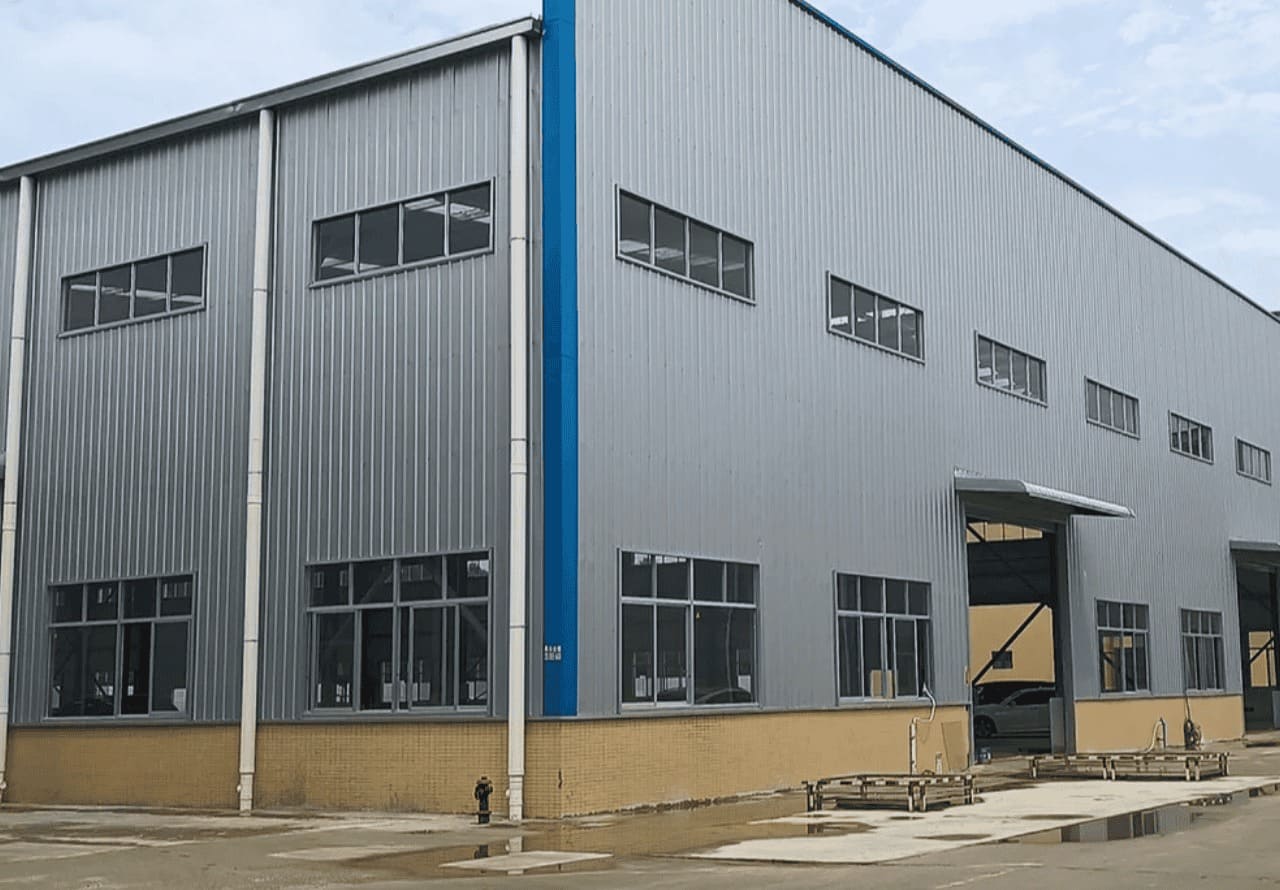

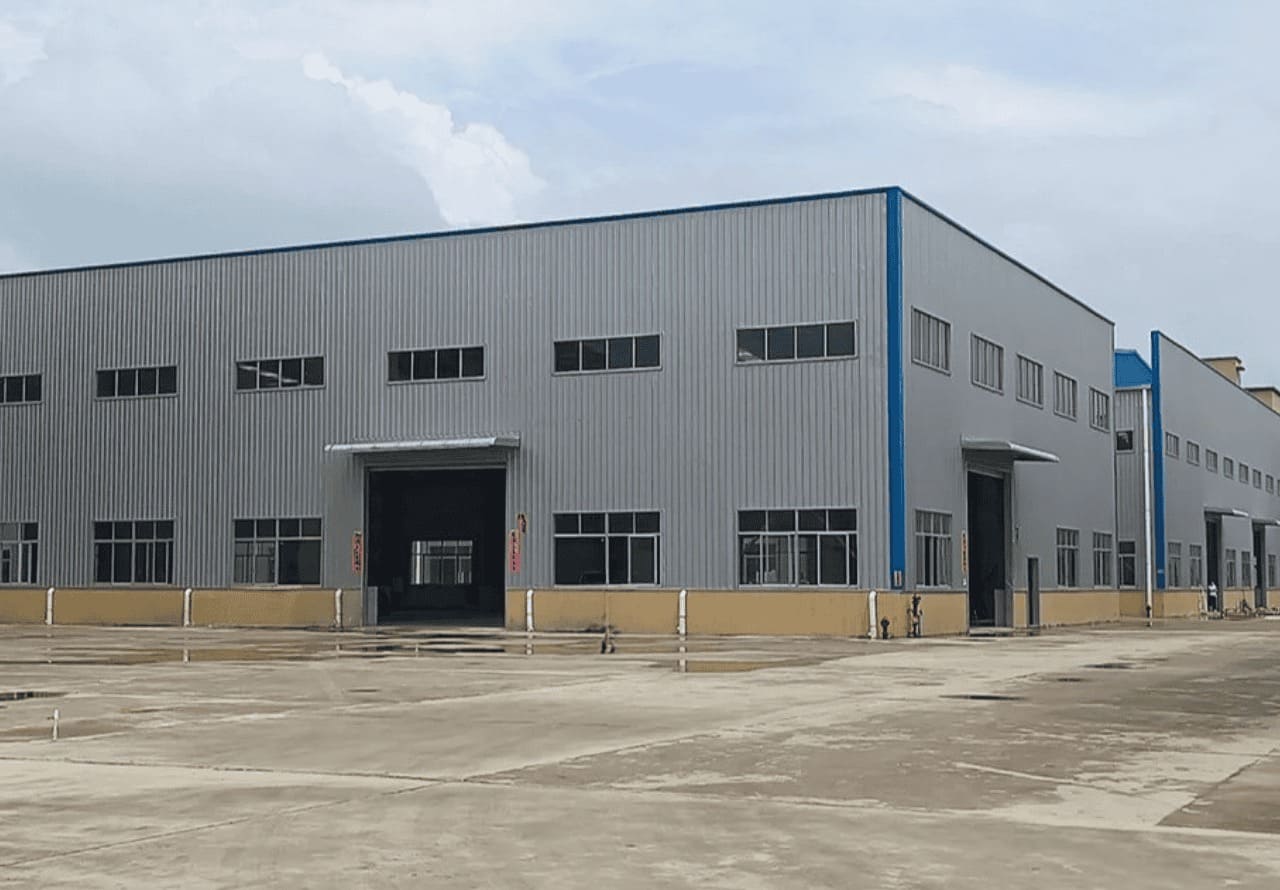

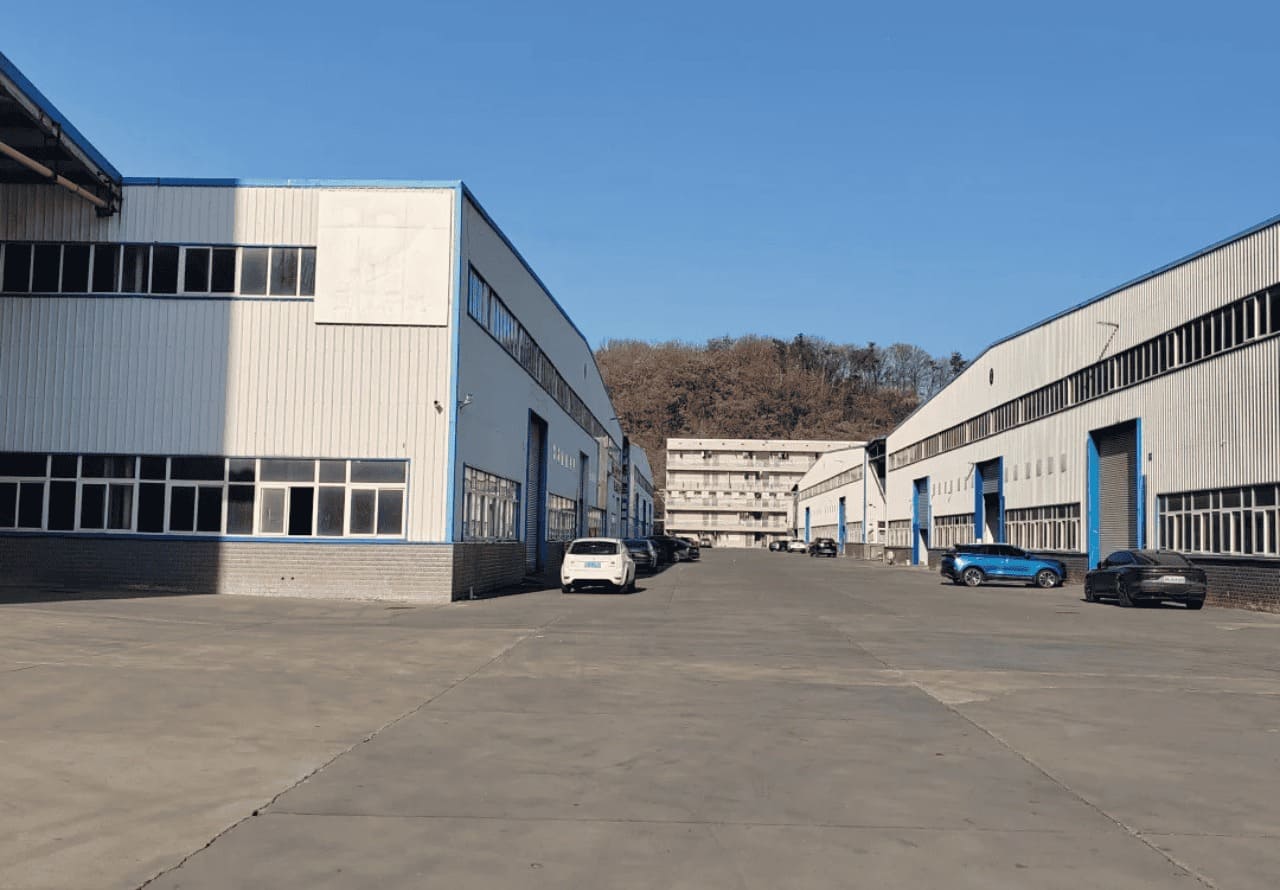

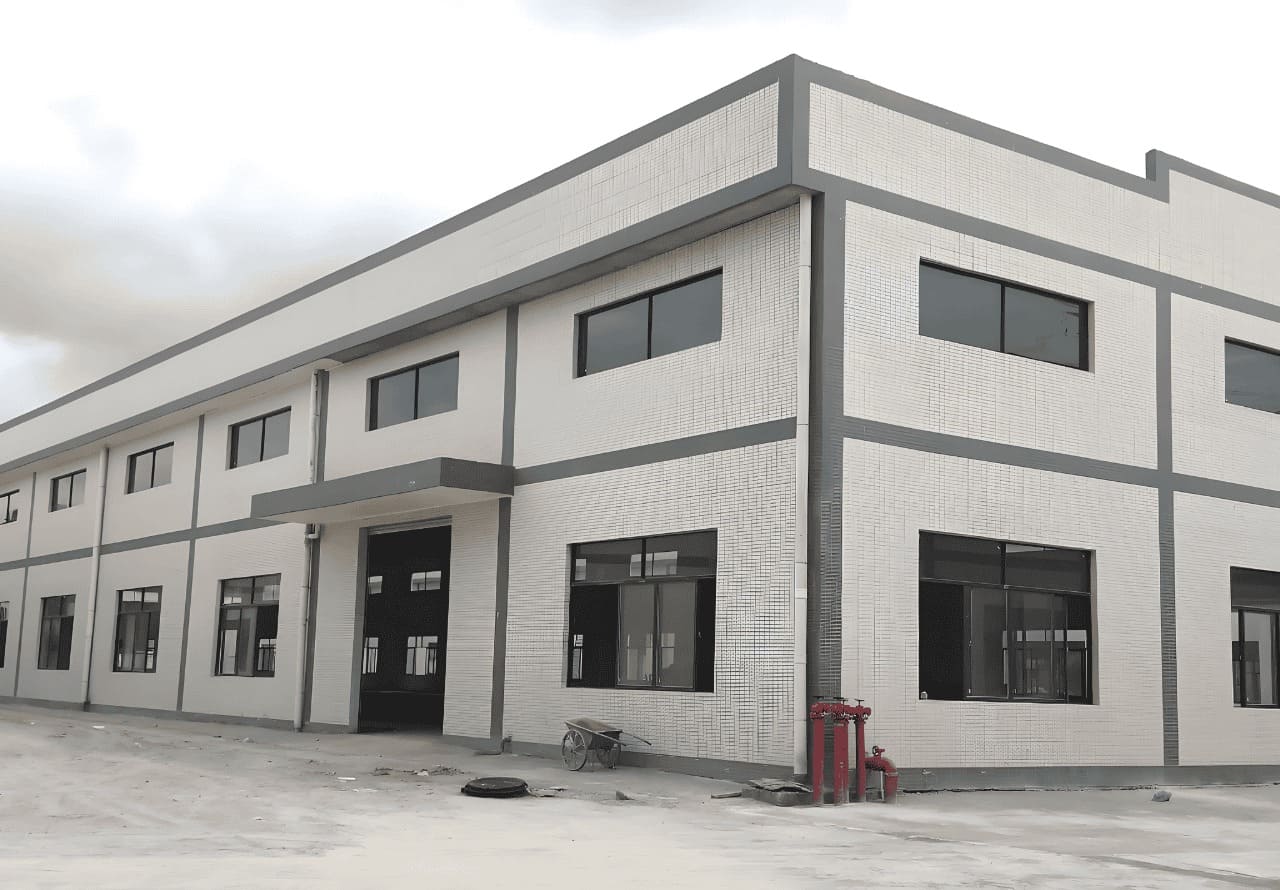

Single Storey Steel Structure Workshop

Single-story steel structure factory building with wide span, durable prefab design, and cost-effective solution for industrial production and workshops.

Our Single Storey Steel Structure Workshop is designed for durability, efficiency, and cost-effectiveness, these structures are ideal for manufacturing plants, warehouses, and other large-scale facilities. Constructed with high-quality steel, they provide superior strength, easy customization, and the ability to withstand heavy loads and harsh environments.

Designed with your business in mind, these steel structures are quick to assemble, cost-efficient, and sustainable, providing a solid foundation for any project.

20m-60m large span design provides column-free space.
Customizable design needs to adapt to a variety of uses.
Steel structures have good earthquake resistance.
Prefabricated components, fast installation and disassembly.
Steel is recyclable and the construction process is low-pollution.

Product Description

Our Product Specifications

Category	Specifications	Notes
Main Structure
– Steel Columns	H-section, box columns, material Q235/Q345	Custom sizes based on span and load requirements.
– Steel Beams	H-section, material Q235/Q345	Supports large spans, up to 60m.
– Roof Truss	Steel truss or beam structure	Provides stable support for various roof types.
Secondary Structure
– Purlins	C/Z sections, material Q235	Standard spacing of 1.5m, customizable.
– Bracing System	Angle steel, round bars	Ensures structural stability and wind resistance.
– Wall Girts	C-sections, material Q235	Connects walls to the main structure, enhancing overall rigidity.
Envelope System
– Roof	Sandwich panels (PU/rock wool/glass wool), color steel sheets, single-layer steel plates	Thickness 50mm-100mm, provides insulation and waterproofing.
– Walls	Sandwich panels (PU/rock wool/glass wool), color steel sheets, single-layer steel plates	Thickness 50mm-100mm, combines aesthetics and functionality.
Other Components
– Skylights	Translucent panels or glass skylights	Provides natural lighting, improves indoor environment.
– Ventilation Equipment	Natural or mechanical ventilation systems	Customized based on client requirements.
– Drainage System	PVC downpipes, steel gutters	Ensures effective drainage and prevents water accumulation.
– Doors and Windows	Aluminum or steel doors and windows	Custom sizes and opening methods available.
Design Parameters
– Span	20m-60m	Larger spans available upon request.
– Height	6m-18m	Designed based on usage and load requirements.
– Load Capacity	Wind load, snow load, seismic load	Complies with local building codes.
Materials & Processes
– Steel	Q235/Q345, surface treatment (galvanized, painted)	Ensures corrosion resistance and aesthetics.
– Connection Methods	Bolted or welded connections	Ensures structural stability.
Sustainability
– Recyclable Materials	100% recyclable steel	Reduces construction waste, aligns with sustainable development.
– Energy Efficiency	Optimized envelope and lighting design	Reduces energy consumption and improves efficiency.
– Green Building Certification	Complies with BREEAM and other green building standards	Provides eco-friendly and sustainable building solutions.
Service & Support
– Technical Support	Comprehensive support in design, installation, and maintenance	Provides detailed installation drawings and remote guidance.
– Warranty	50 years	Covers main structure and envelope system.
– Installation Services	On-site installation or remote guidance	Provided based on client requirements.

The above specifications are standard configurations; specific parameters can be customized based on client needs.
We offer one-stop services, including design, manufacturing, installation, and after-sales support, ensuring project success.

Advantages of Single Storey Steel Structure Workshop

Fast construction speed: prefabrication in the factory, quick assembly on site.
High cost-effectiveness: light weight, low foundation cost, more competitive overall cost.
Easy maintenance: corrosion resistance, strong durability, low maintenance cost.
High space utilization: column-free design, providing more usable space.
High adaptability: support future expansion or renovation.

Application of Single Storey Steel Structure Workshop

Application Field	Specific Uses
Industrial Plants	Production workshops, manufacturing factories, processing facilities
Warehouses	Goods storage centers, logistics distribution centers
Agricultural Facilities	Livestock farms, greenhouses, agricultural machinery storage
Commercial Buildings	Supermarkets, exhibition halls, retail centers
Others	Aircraft hangars, sports stadiums, parking facilities

Our Cases

Langfang Linkong International Convention and Exhibition Center Project: With a construction area of approximately 300,000 square meters, it integrates exhibition, commercial and office functions, and uses high-strength steel to meet the needs of large spans and flexible spaces.
Abu Dhabi International Airport: Adapting to high temperatures, strong winds and sandstorms, high-quality steel is selected to ensure structural strength and stability to meet the needs of airport modernization.
Jinan BYD New Energy Industrial Park Project: Provides high-strength steel structure solutions for the new energy industry, ensuring the safety of large spans and high-load areas, and supporting efficient production.

Our design highlights

When designing a single-story steel structure workshop, we focus on multiple aspects to ensure its safety, stability and sustainability:

Load calculation: wind load, snow load, earthquake load.
Temperature expansion joint: prevent structural deformation caused by temperature changes.
Support system: ensure structural stability and rigidity.
Drainage system: reasonably design roof drainage to prevent water accumulation.
Recyclable materials: steel can be 100% recycled to reduce construction waste.
Energy-saving design: optimize the enclosure structure and lighting design to reduce energy consumption.
Green building certification: meet green building standards such as BREEAM.

What is the price of a Single Storey Steel Structure Workshop

The specific price of a single-storey steel structure workshop depends on the following factors:

Span and height: The larger the span and the higher the height, the higher the cost.
Material selection: The type of steel (such as Q235, Q345) and enclosure materials (such as sandwich panels, color steel plates) affect the cost.
Insulation requirements: The higher the insulation performance requirements, the higher the material cost.
Customization requirements: Special design or functional requirements may lead to price fluctuations.

We provide personalized quotation services, and make detailed calculations based on the specific needs of customers to ensure transparency and rationality. Whether it is a small workshop or a large factory, we can provide the most cost-effective solution.

Service and Support

We provide customers with comprehensive services and support to ensure the smooth design, construction and operation of single-story steel structure workshops:

Design Support: Provide professional design services, including structural optimization, load calculation and customized solutions.
Installation Guidance: Provide detailed installation drawings and on-site technical guidance to ensure construction quality.
Maintenance Support: Regular inspection and maintenance recommendations to extend the service life of the building.
Warranty Period: We provide a 50-year warranty for single-story steel structure workshops, covering the main structure and enclosure system, to ensure long-term worry-free use for customers.
Installation Service: We provide remote technical support to solve problems in construction through telephone, video and other means to ensure smooth installation.

Certification

Our Container Houses are certified with CE and ISO patents, ensuring unparalleled quality and innovation in compact living solutions.
